Welcome
Seismo is new. Seismo is for finding and extracting signals in really long lightcurves, so it needs to be able to go really fast too, and that means that it needs to be able to advantage of multiple cores or GPUs in your computer.
At the moment Seismo can only do Deeming Periodograms but this will change quickly.
Current features
- Parallel Deeming periodogram routines (CPU/GPU)
- Simultaneous fitting of multiple sine waves
- Network access. Call seismo routines on a remote server (Python 2.7 only at the moment)
Installation
Make sure you have python 2.7 or newer as well as pip
On OSX I use homebrew. If you have not, install python
from there first then install pip.
(optional) brew install python
brew install pip
On Debian/Ubuntu
sudo apt-get install python-pip
Get seismo with
git clone git@github.com:ezietsman/seismo.git
Once pip is installed, install seismo by running the following in the seismo folder.
pip install numpy flask-restful mako pyopencl matplotlib scipy requests
pip install .
You may need sudo for these commands in linux
Please let me know if it doesn’t work for you.
Examples

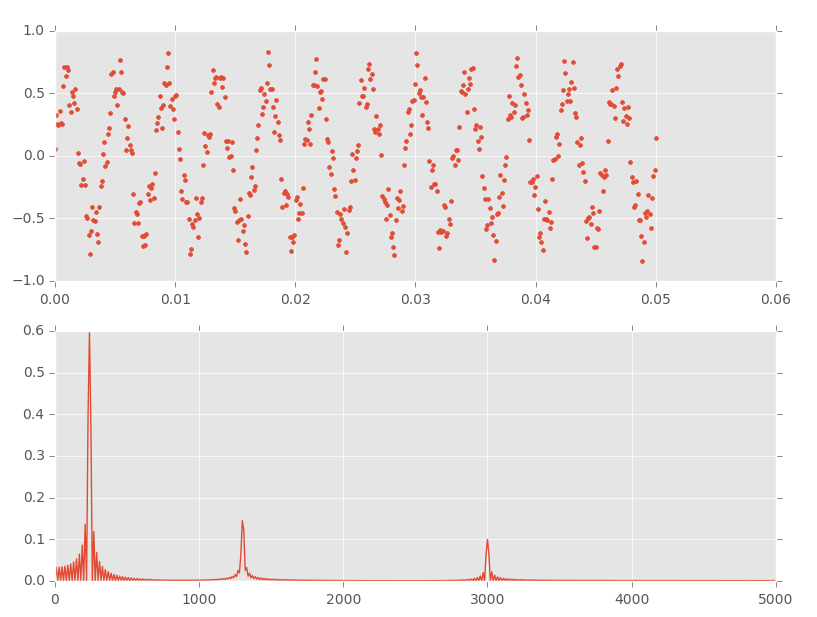

Finding peaks in time-series data
import matplotlib
from matplotlib.pyplot import subplot, plot, show
from numpy import linspace, sin, pi
import seismo
matplotlib.style.use('ggplot')
# create fake data
x = linspace(0, 0.05, 500)
y = 0.6*sin(2*pi*240*x)\
+ 0.15*sin(2*pi*1303*x + 0.4)\
+ 0.1*sin(2*pi*3000*x)
# Calculate Deeming periodogram
f, a = seismo.deeming(x, y)
# plot
subplot(211)
plot(x, y, '.')
subplot(212)
plot(f, a)
show()
Fitting a sinewave to noisy data
import matplotlib
from matplotlib.pyplot import subplot, plot, show
from numpy import linspace, sin, pi, random
import seismo
matplotlib.style.use('ggplot')
# create fake data
x = linspace(0, 0.05, 500)
y = 0.6*sin(2*pi*120*x) + 0.2*random.randn(x.size)
# find peak using periodogram
f, a = seismo.deeming(x, y)
fmax, amax = seismo.find_peak(f, a)
# create and fit signal
signal = seismo.signal()
comp1 = seismo.sinewave(amax, fmax, 0)
signal.add_component(comp1)
signal.fit(x, y)
# plot
plot(x, y, '.')
plot(x, signal.evaluate(x), lw=2)
show()
See the examples folder for more detailed examples. I’m sorry, I haven’t written proper docs yet. Coming Soon!
Running the unit tests
To see if the installation completed successfully, run:
py.test tests
This should give some output and all the tests should pass.
Notes about OpenCL and GPU calculations
To use the OpenCL extensions, you need an OpenCL driver installed for each different device. On OSX this is installed already, on Linux it is not. For NVIDIA users, one is installed with the CUDA SDK, I do not know what is needed for AMD cards and CPUs.
NOTE: You do NOT need the CUDA SDK for the opencl driver.
